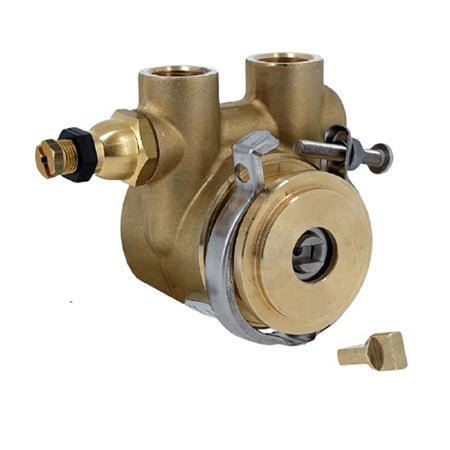

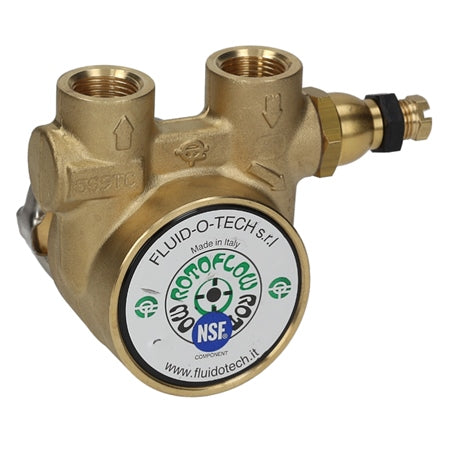

Fluid O Tech Coffee Rotary Vane Pump 50L 61.5mm
This is the most common pump found in home or small plumbed espresso machines. (For the larger 200L 99mm pump, click here).
It is a mid-volume 50L brass pump with a balanced by-pass to adjust the pump pressure. It's factory set at 9 barS, you don't need to adjust it.
Rotary vane pumps can fail when debris jams the bearings or rust forms in the bearings due to age or inactivity. Water or steam can splutter from the groups, indicating poor flow of water. If, when you dismount the pump, you cannot easily rotate the shaft with your hand, then the bearings are damaged/ rusted, and the pump must be replaced.
N.S.F. approved + Low lead brass
Specifications:
- Adjustable: Factory set at 9 bar adjustable to up to 15.8 bar
- Flowrate: 50 litres per hour
- Connection: 3/8" GAS/BSP thread fitting NSF approved
- Length: 61.5 mm without the pin
- Pump rate: 50 L/H
- Material: Low lead CW510L (OT57) Brass + steel
Manufacturer codes:
FLUID TECH CAO054AGAFNO000
FLUID o TECH CAO054AGAFN2800
FLUID TECH CAO054AGANNO000
FLUIDO TECH CO0054AGANNOO00
FLUIDO TECH CO054
FLUIDO TECH PO052
NUOVA SIMONELLI 01300004
SPAZIALE O2390
ECM P3025,
lelit 9700002, LEL9700002
Fits Models:
ASTORIA CMA: Plus for you, ADRIA, ARGENTA, BRAVA, Ck CKE, CKX, CKXE, DENISE, DORA, LISA, PRATIC, PRATIC NE VANIA
Bezzera: BZ35, BZ40, Giulia, Mitica, Matrix, Verticale, Galatea Carimali: Eta beta Im 2e serie,F1/f12 auto,Systema uno,Ter style, E9, KIKKO, ARMONIA, ARMONIA-SOFT, ARMONIA- SOFT-PLUS, ARMONIA-TOUCH, ARMONIA-TOUCH-V3, ARMONIA-V2, ARMONIA-V3, ARMONIA-Z, MX-3-V2, MX-3-V MX-4, MX-4-V3, MX-5-SILVER-V3, MX-5-V3, MYA, OPTIMA- SOFT-V3, OPTIMA-ULTRA, OPTIMA-V3, OPTIMA-Z-V3
Crem Expobar: Office
Cime:
ECM: Convento, Elektronika Synchronika, Mechanika IV Profi , Technika IV Profi, Technika V Profi PID.
Lelit: Bianca, Giulietta LEL9700002
La Nuova Era:
La Rocca
La San Marco:
Sanremo: Capri, Firenze, Milano, Pisa, Roma, Venezia, Verona
Nuova Simonelli: Appia lgr, '06, '08, Appia 2gr. compact Appia 1gr,, Appia Life lgr, Appia Life compact, Cafe Caffetteria, Cafe master, Cafe Prontobar, Cafe talento, Optima, Master, Program Profitec: Pro 700 and models with a rotary vane pump Rocket: Boxer, Cromometro, Giotto evoluzione, Giotto Cromometro,
Mozzafiato Cromometro, Mozzafiato evoluzione, R8V, R58 60V
Spaziale: 3000 / super 3000, Rapid, S1, S5 / compact, Spaz zio
Victoria Arduino: Athena, Venus XLVI coffee machines.
WEGA: AIRY, ATLAS, COLOSSEUM, COMBINOVA, ESPRESS EURO-2000, FORMULA-MILANO, JUNIOR, MININOVA, NOV ORION ECO, POLARIS, SPHERA, START, SYNTESIS, VELA, VENERE, VENUS
